Intelligent LED driver IC


Intelligent LED driver IC

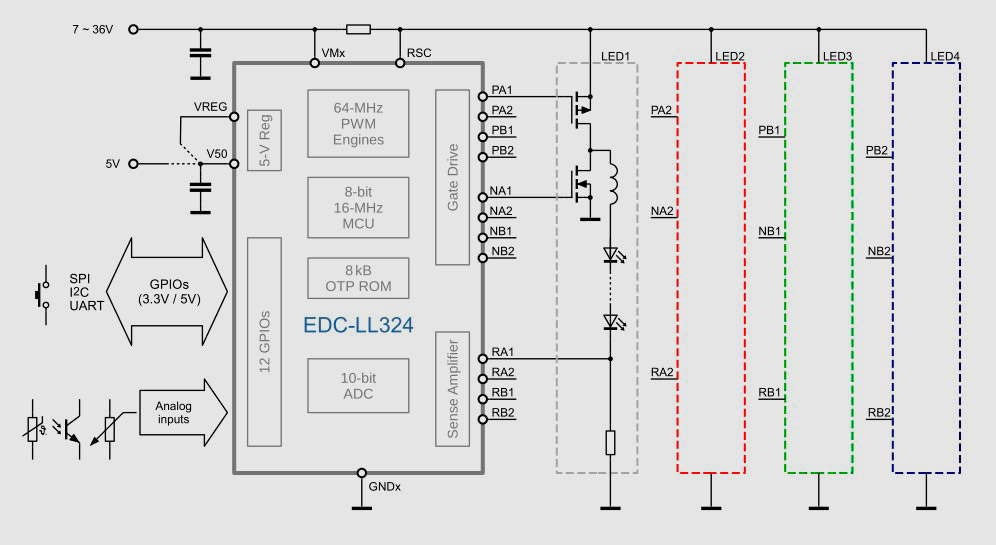

The EDC-LL324 is a smart LED driver IC capable of driving up to four LED strings in either buck or boost configuration. It combines four independent 64-MHz current-controlling state machines, an AVR® compatible micro controller, and four gate driver pairs for external low-RDS(on) P/N-channel MOSFETs supporting LED currents up to 5A.


  • 4 independent N-channel / 4 independent P-channel MOSFET drivers
  • 4 adjustable PI regulators
  • 4 current sensing amplifiers
  • Synchronous rectification option
  • Fixed frequency PWM engine up to 200 kHz
  • 16 MHz 8 bit AVR® compatible MCU
  • 10 bit 2MSPS SAR ADC
  • 8 kB OTP memory
  • Internal oscillator, timers, monitors
  • SPI, I²C, UART, free GPIOs


RGBW (single or string LEDs) applications as

  • Wall wash lighting,
  • ambient lighting
  • aquarium or plant lighting
