Description

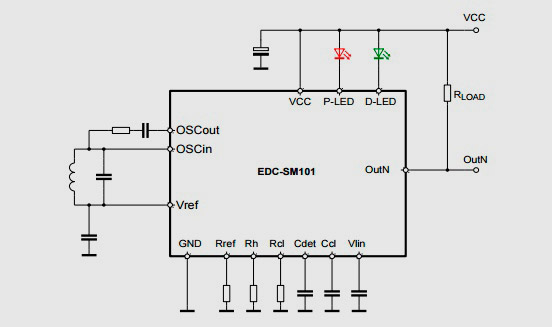

The EDC-SM101 is an IC for inductive proximity sensor applications and can be used with a range of inductive transducers. It does have the analog front end, the detection logic, output stage and the status LED drivers (detection and power) integrated.

Features

• Fully integrated low cost proximity sensor IC
• Supply voltage 5.5...38 VDC
• User-adjustable sensing range and hysteresis (0...15%)
• Can work with broad selection of inductive transducers
• Voltage regulator to improve immunity against fluctuations of supply voltage
• Inactive output during start-up
• NPN open collector output with guaranteed sink current of 150 mA
• Output overload/overcurrent protection
• Broad range of operating frequency: 0.1...1MHz
• Broad operating temperature range: -25°C...90°C
• QFN24 package

Applications

• Inductive proximity sensors
