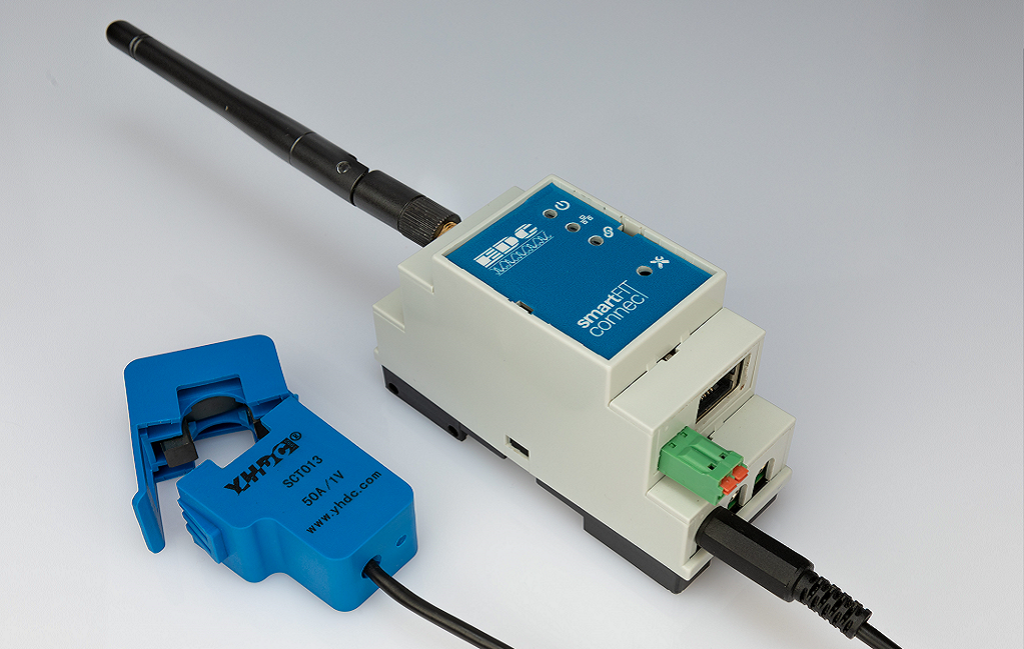

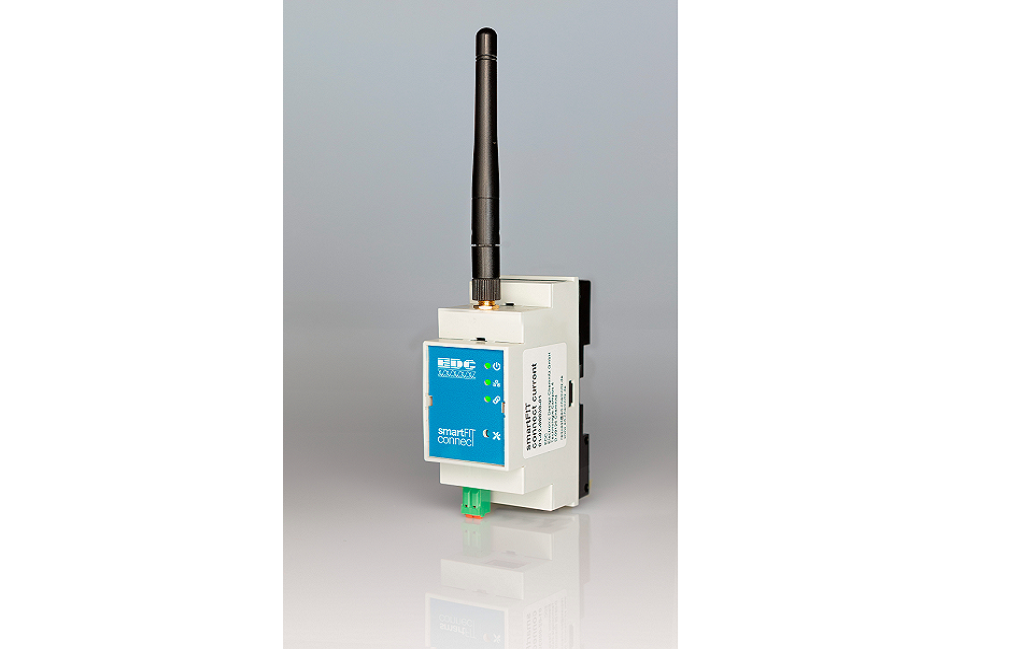

With the help of digital transformation we enable existing platforms to be industry 4.0 ready. Usually existing plants are not used to their full potential since they are no longer state of the art. EDC's simple machine retrofit solution allows to read out the power consumption of existing plants. These values are sent to a server or cloud via IoT protocols. The data can be used to record electricity costs, identify system statuses and detect imminent failures at an early stage. Optimization potentials can be harnessed via the read-out data. With the EDC smartFIT current, you have a simple, cost-effective and risk-free retrofit solution for your existing systems that offers decisive added value.


  • Simple, cost-effective retrofitting of power measurement to existing systems (retrofit)
  • Simple administration via a web interface (dashboard)
  • No interference with existing industrial controls or electronics/li>
  • Collect complex production cost figures (utilization rates, electricity and production costs)


Network LAN: RJ45 Ethernet
WLAN: b/g/n 2,4 GHz, switchable, WPA2 encoded, Access Point, extern antenna
DHCP: static IP, DNS, SSL
Data protocols MQTT: with authenitification
MS Azure: compatible
Dashboard web-app in a web-wrowser
Sensors Number: 3
principle: inductive
range: 0...50 A AC
Plug: 3,5 mm jack plug, 2-polig

Technical Data

Dimension 35 mm x 89 mm x 58 mm (W/H/D)
Weight ca. 150 g (without sensors)
Case PC (UL 94 V-O)
Supply 24 VDC smoothed
Protection class IP 20
Operating Temperature -20°C - +50°C
Mounting DIN rail mounting
Certification CE
