The simplest form of digitalization...

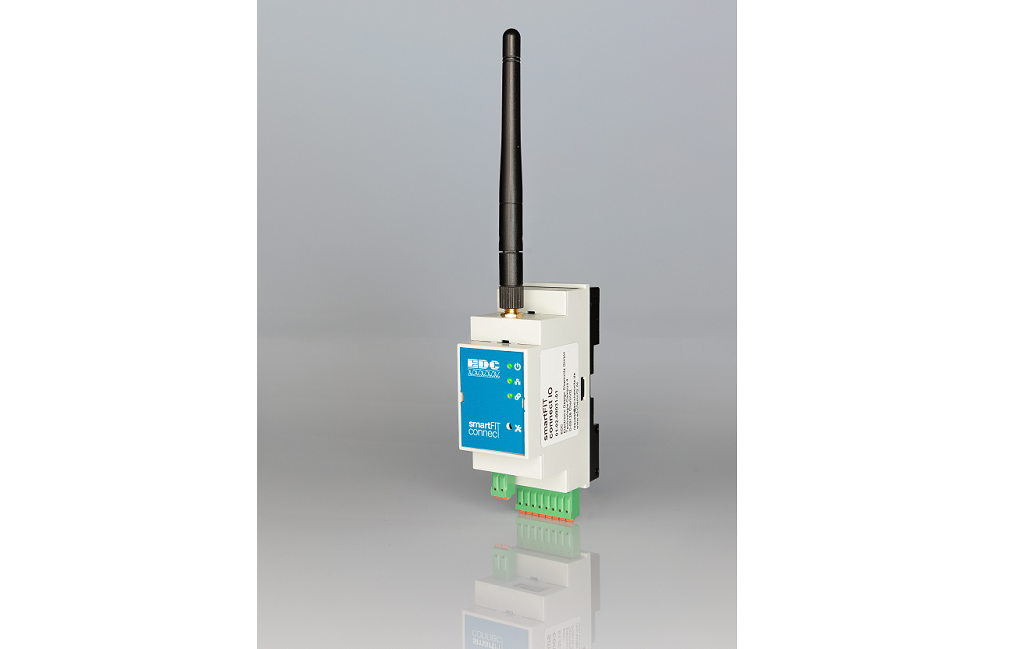

...are two digital inputs and outputs directly connected via cloud. EDC smartFIT digital IO provides this function to implement numerous industry 4.0 projects simple and cost-effective. Digital plant states can be read out and switched via a server without interfering in existing industrial controls. Digital sensors such as light barriers can easily be connected via IT and retrofitted in the application. The web dashboard enables easy commisioning and operation of the device.


  • simple, cost-effective retrofitting of existing plants (retrofit)
  • digital connection of machines and sensors to the server via LAN or WLAN
  • simple administration conveniently via web interface (dashboard)
  • no interference in existing industrial controls required
  • no additional software required on the device


Network LAN: RJ45 Ethernet
WLAN: b/g/n 2,4 GHz, switchable, WPA2 encoded, Access Point, extern antenna Antenne
DHCP: static IP, DNS, SSL
Data protocols MQTT: with authentification
MS Azure: compatible
Dashboard Web-App mit Web-Browser, User-Login, OTA-Update
Interface 2 digital inputs

EN 61131-2 type3

2 digital outputs (Relais)

max. switching voltage: 200V DC

max. current carrying capacity: 0,5A

max. switching capacity: 10W

Technische Daten

Dimension 35 mm x 89 mm x 58 mm (W/H/D)
Weight ca. 150 g (without sensors)
Case PC (UL 94 V-O)
Supply 24 VDC smoothed
Protection class IP 20
Operating temperature  -20°C - +50°C
Mounting DIN rail mounting
Certification CE
